3/8-16 Scalloped Knob with threaded sleeve
T38AS100-01E 3/8-16 Cast Iron Scallop Captive Screw Knob Assembly -
With
Captive Threaded Collet
Knob is cast iron with steel stud &
sleeve. Material & Finish:
Knob: Cast Iron -
Stud: G-5 -
Sleeve: 12L14 black oxide
These captive screw knob assemblies stay with
fixture, eliminating lost fastening hardware and allowing for faster
change overs and set up. They also add a high quality look and feel to
the finished part. These captive fasteners consist of a spring loaded
screw knob assembly and collet. These assemblies instantly install in a
single threaded hole, by inserting the collet
into the fixture and securing tight. Collet has wrench flats for easy
installation. When unfastened, the knob is held away from the fixture by
spring tension and the screw is fully withdrawn into the collet. This
provides a flush surface on the back side of the fixture, which is ideal
for sliding surfaces. When fastened, the knob is pulled down over the
collet for tight secure clamping.
Instructions included.
Data Sheet

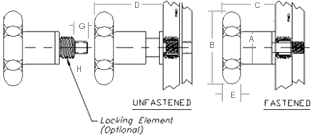

Knob Dimensions
Thread Size |
A |
B |
C |
D |
E |
G |
H |
3/8-16 |
7/8 |
2 |
1 5/8 |
2 1/32 |
1/2 |
3/8 |
5/8-18 |
Panel Preparation Dimensions
Knob Assembly Thread Size |
A |
B (Max Thickness) |
3/8-16 |
5/8-18 UNF |
1/2 |
NOTE: For panels less then the MAX thickness, add spacer as
needed between the sleeve and the panel.
CAUTION: Keep end of sleeve flush with back of panel.
